El Diccionario de Clamptek: Grapas Rápidas Modulares (CH-70730A)

Toggle clamps are a kind of tool that is used for clamping, positioning, and other functions in industrial manufacturing. During mass production, they can be used when accurate securing and fast clamping are required. Because of its easy operation, efficiency in processing, and stable clamping force, some manufacturers will use toggle clamps to increase the speed of operation before going into automated fixtures. Toggle clamps are usually used in fixture design, welding, inspection tools, molds, drilling, and assembly work.



Toggle clamps are divided into the following types according to the shape structure and movement (force direction): vertical, horizontal, push-pull, latch, extrusion, composite vertical, pneumatic, C-type clamp, F-type clamp and other, etc. In this article, we will be introducing Clamptek's Heavy Duty Weldable.



Features of Clamptek’s Toggle Clamps:

Simple structure

Easy to install

Safe and reliable

Wide range of usage

High quality

Affordable

Variety of selection

Stable clamping force

Electroplating with anti-rust treatment

Long product life span (approximately 100,000 uses in normal operation)



When will the toggle clamp be used?

Toggle clamps are widely used in major manufacturing, processing industries, and industries that require fixing the workpieces into places during production.

For example, aircraft assembly, automobile/motorcycle welding and manufacturing, bicycles, machine tools, fixture/molds, mechanical hardware/electronic parts, woodworking manufacturing, plastic products, sports equipment production, and other industries.



Heavy Duty Weldable: This type of clamp can be welded with various combinations with flexible collocations, and the handle can be welded at any angle to suit various working conditions. It is suitable for applications such as auto assembly, fixture components, iron pipe welding, etc.



Recommend!! Clamptek's Self-Produced Heavy Duty Weldable – CH-70730A:



➤ CH-70730A is a clamp that uses forged alloy steel. Forging is a processing method in which the metals are heated to an ideal working temperature, and when the external force is applied, their shape, density, mechanical properties, and grain structures are changed in the manufacturing process.

The advantages of forgings are high strength, high density, good weather resistance, and high ductility.



CH-70730A’s Holding Capacity: 700kgf

Product Weight: 1280 g

Bar Opens: 200°

Handle Opens: 128°



*This product series is widely used in the automobile manufacturing industry, if you have such needs, please feel free to contact us!

*We also welcome anyone interested in OEM projects. Please feel free to contact us for more information.

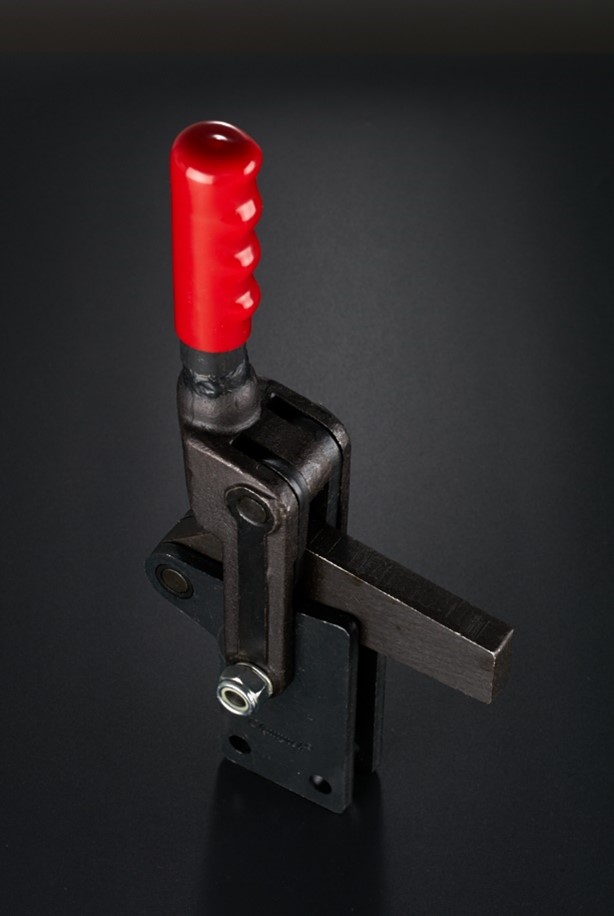

220328-1

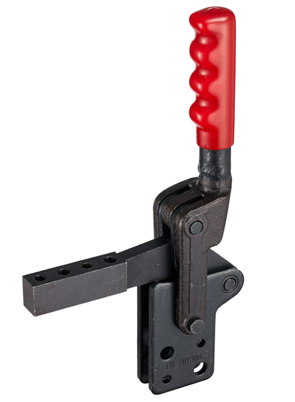

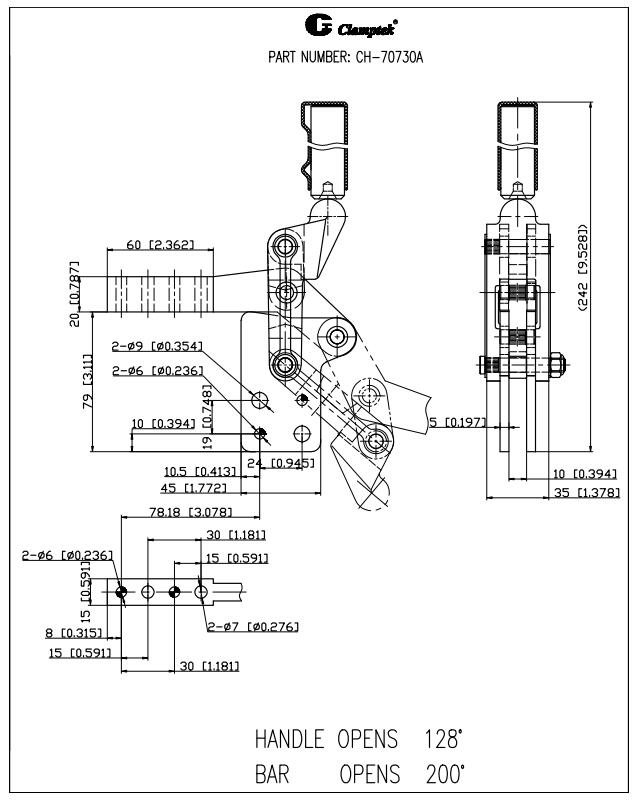

220328-2 220328-3
