CLHW

Información del Producto

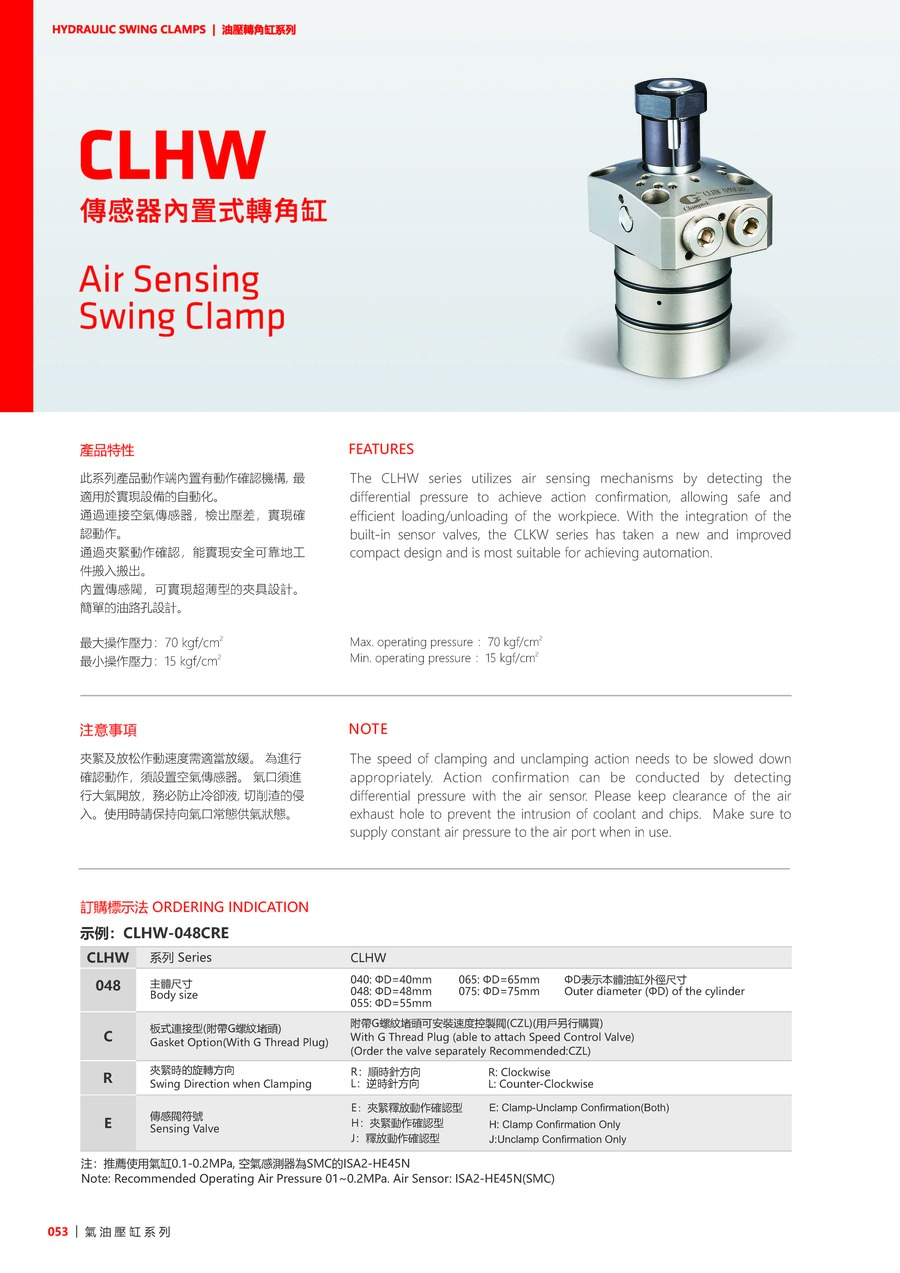

The CLHW series utilizes air sensing mechanisms by detecting the differential pressure to achieve action confirmation, allowing safe and efficient loading/unloading of the workpiece. With the integration of the built-in sensor valves, the CLKW series has taken a new and improved compact design and is most suitable for achieving automation.

Max. operating pressure: 70 kgf/cm²
Min. operating pressure: 15 kgf/cm²

NOTE:
The speed of clamping and unclamping action needs to be slowed down appropriately.
Action confirmation can be conducted by detecting differential pressure with the air sensor.
Please keep clearance of the air exhaust hole to prevent the intrusion of coolant and chips.
Make sure to supply constant air pressure to the air port when in use.

P.S.
Recommended Operating Air Pressure 01~0.2MPa. Air Sensor: ISA2-HE45N(SMC).

Indicación de Compra

（Ej.CLHW-048CRE）

CLHW	Series	CLHW
048	Body Size	040: ØD=40mm, 048: ØD=48mm, 055: ØD=55mm, 065: ØD=65mm, 075: ØD=75mm(Outer diameter ΦD of the cylinder)
C	-	Gasket Option(With G Thread Plug)(Able to Attach Speed Control Valve)(Order the Valve Separately Recommended: CZL)
R	Swing Direction when Clamping	L: Counter-Clockwise, R: Clockwise

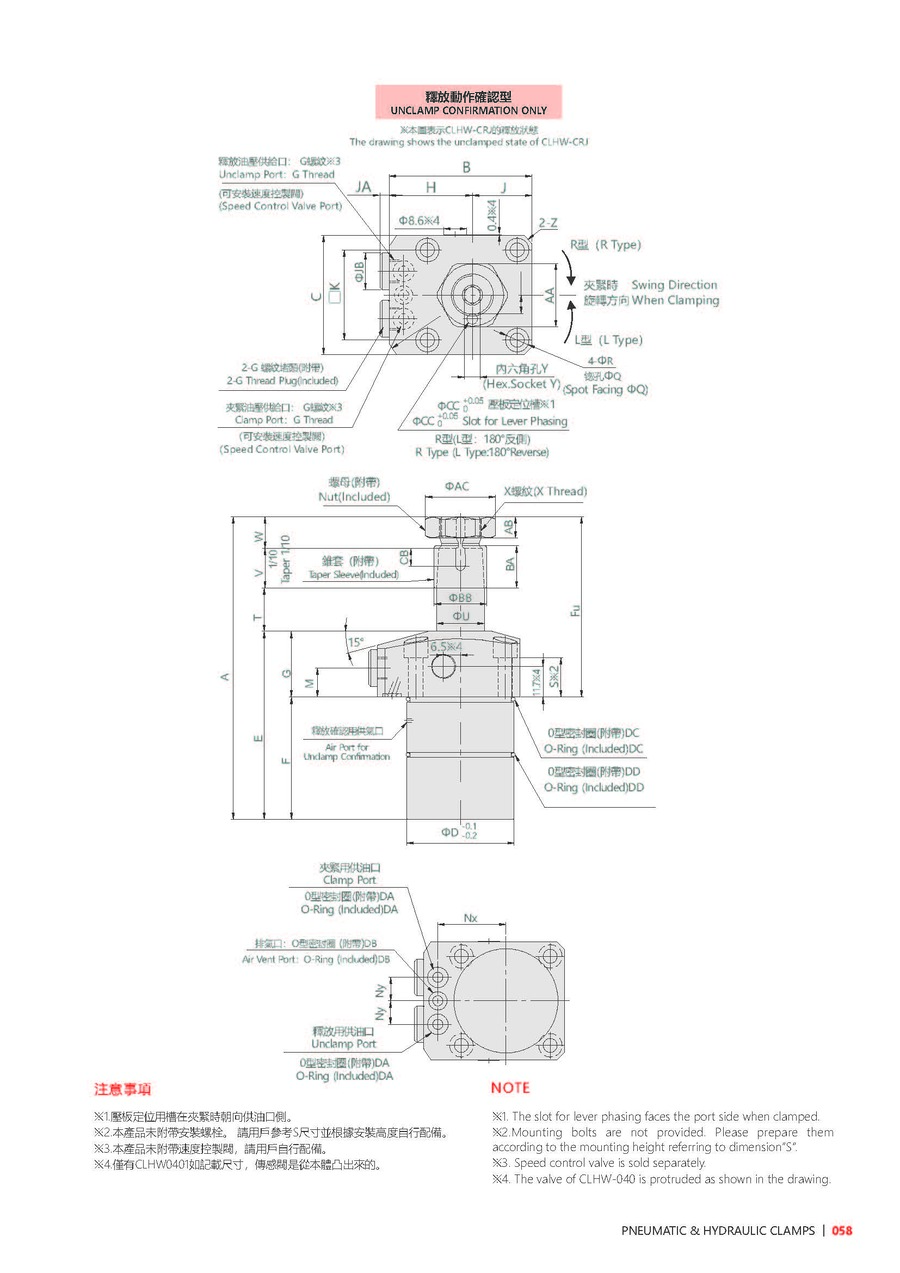

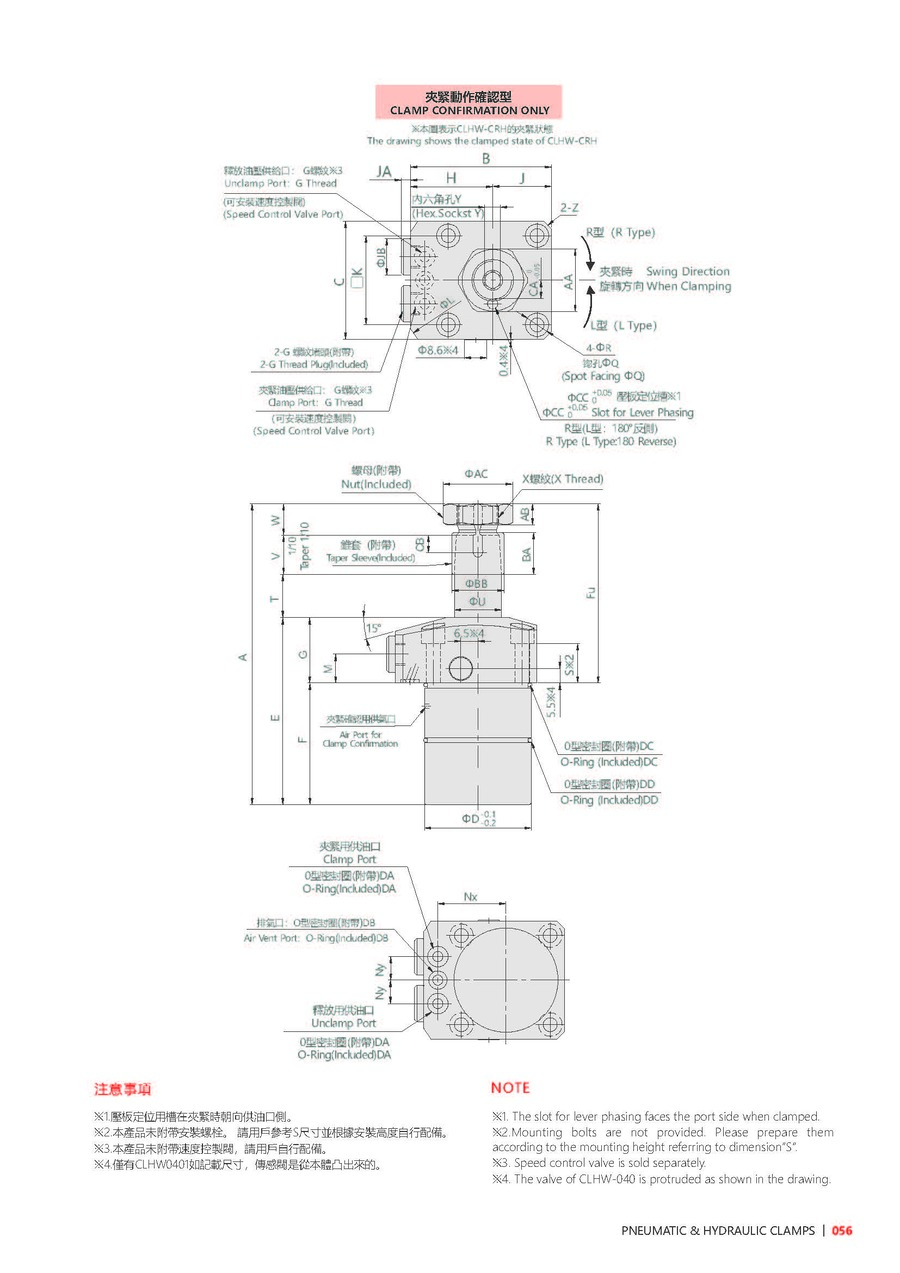

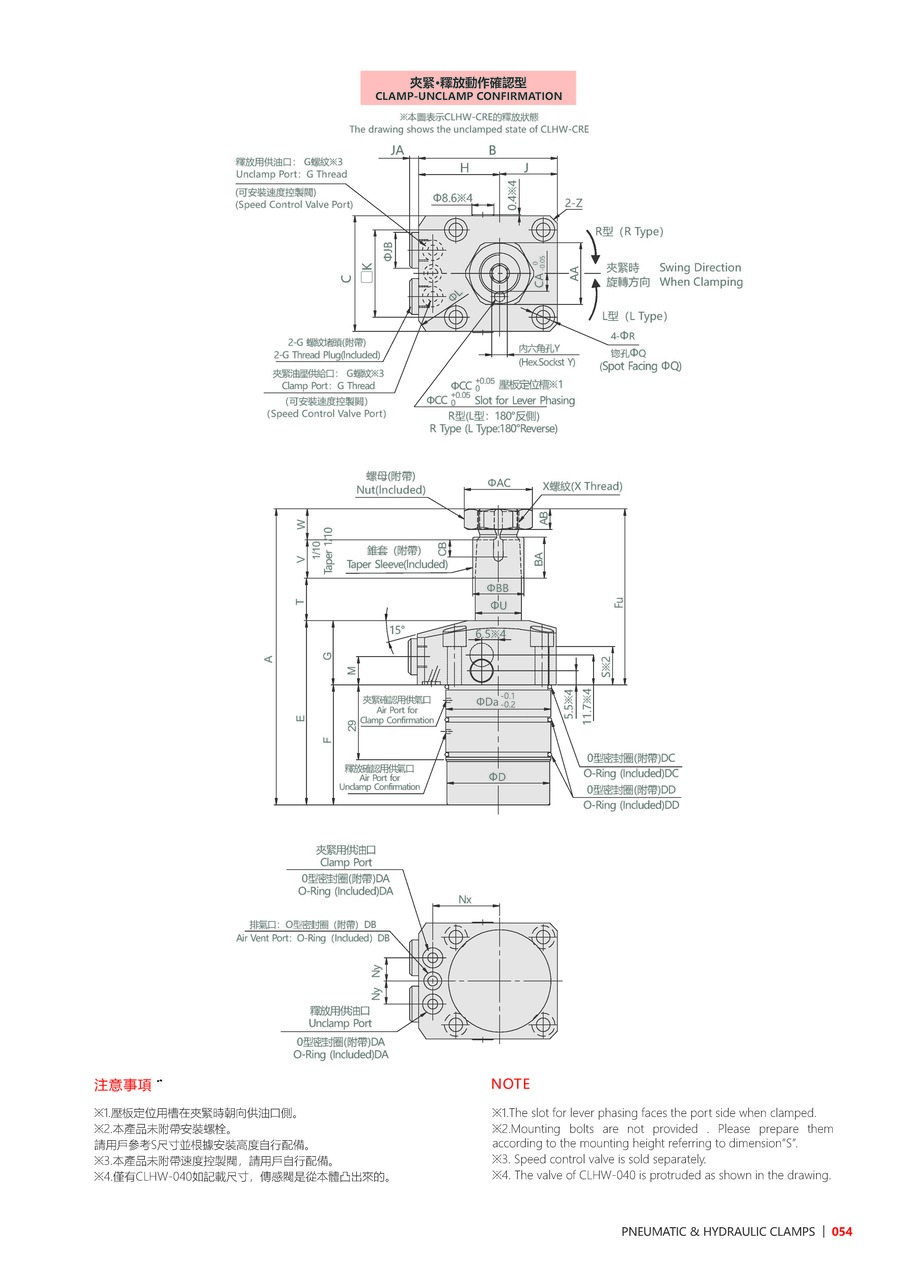

E	Sensing Valve	E: Clamp-Unclamp Confirmation(Both), H: Clamp Confirmation Only, J: Unclainp Confirmation Only

Información del Producto

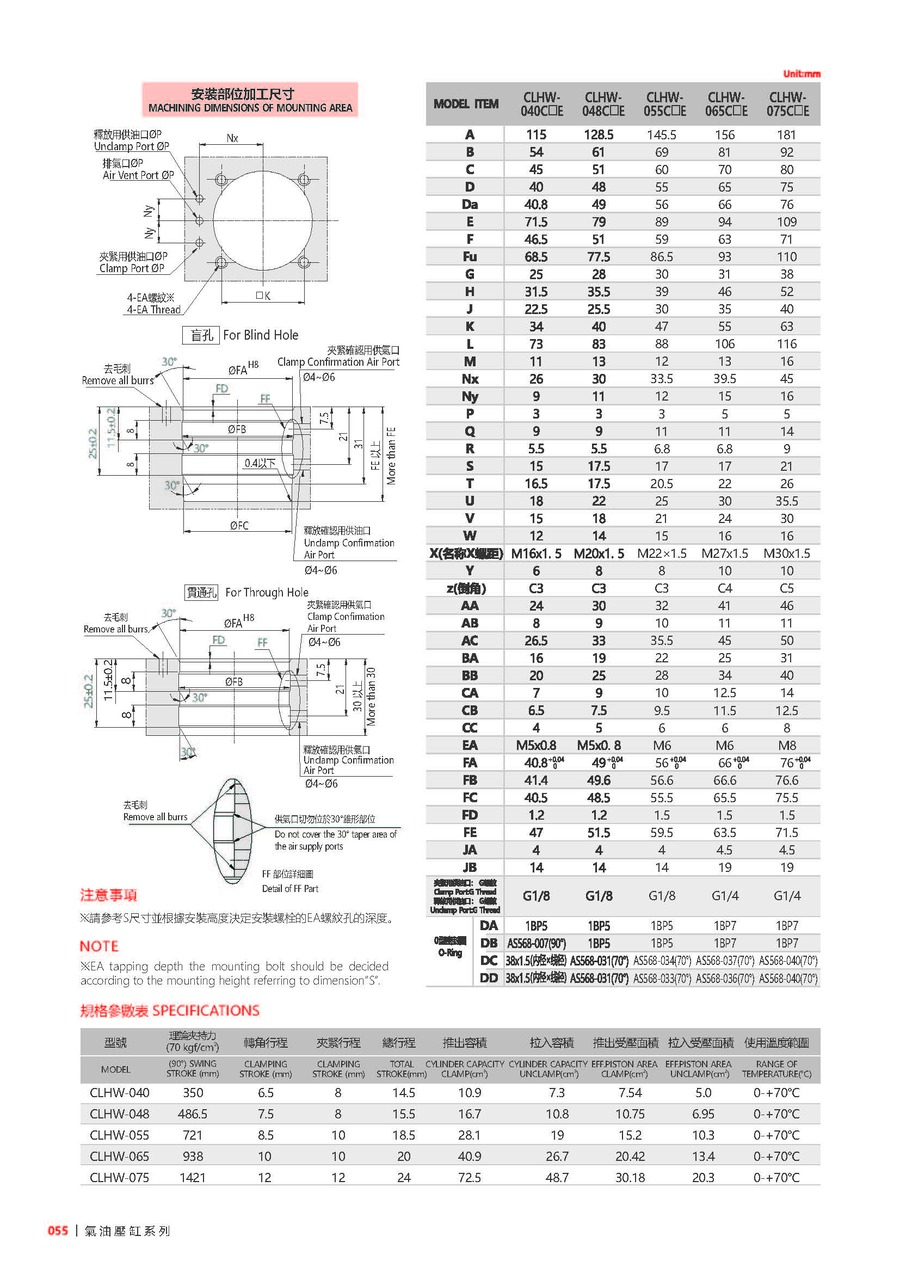

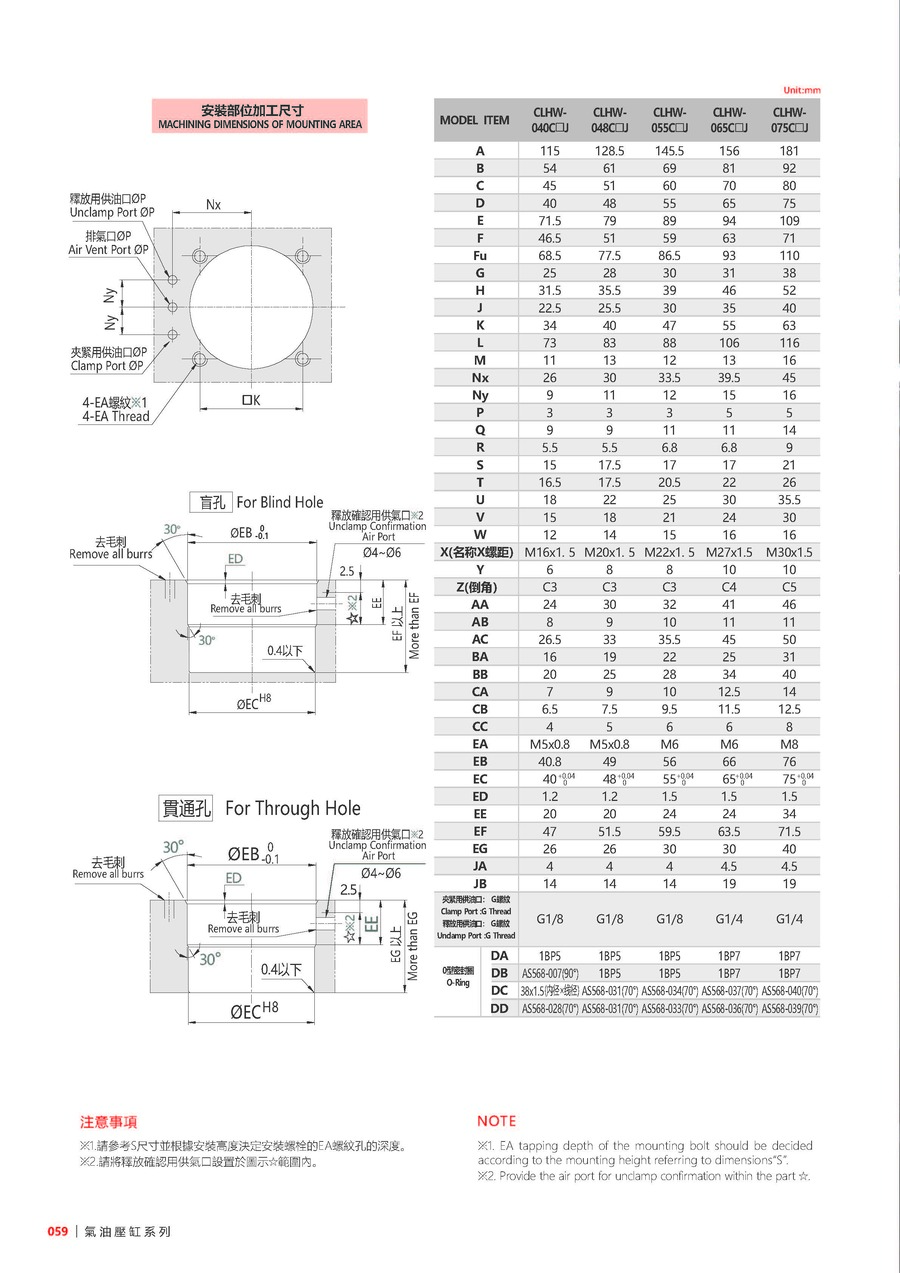

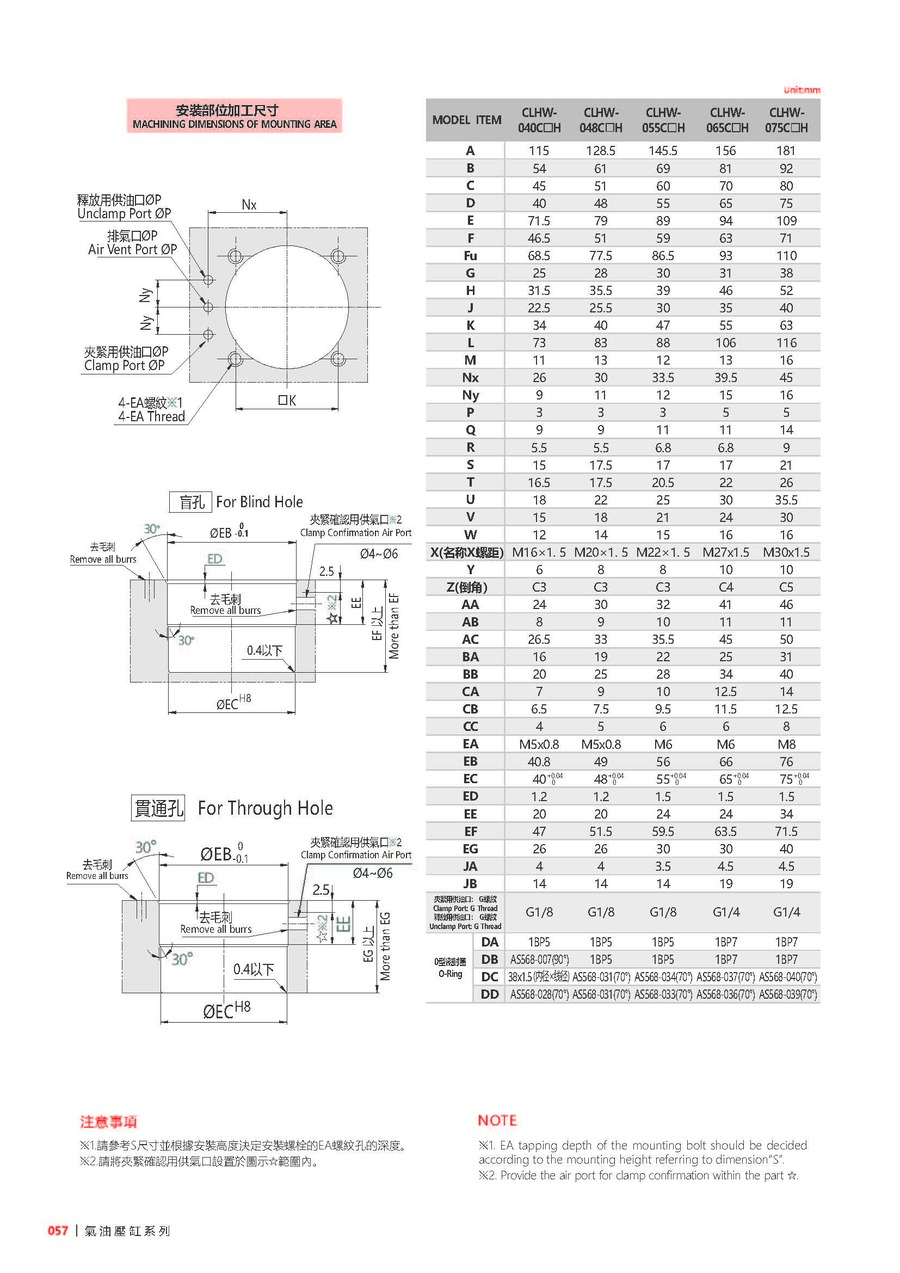

Modelo	CLHW-040	CLHW-048	CLHW-055	CLHW-065	CLHW-075
Clamping Force(70kgf/cm²)	350	486.5	721	938	1421
Swing Stroke(mm)	6.5	7.5	8.5	10	12
Clamping Stroke(mm)	8	8	10	10	12
Total Stroke(mm)	14.5	15.5	18.5	20	24
Cylinder Capacity Clamp(cm³)	10.9	16.7	28.1	40.9	72.5
Cylinder Capacity Unclamp(cm³)	7.3	10.8	19	26.7	48.7
EFF. Piston Area Clamp(cm²)	7.54	10.75	15.2	20.42	30.18
EFF. Piston Area Unclamp(cm²)	5	6.95	10.3	13.4	20.3
Range of Temperature(°C)	0~+70°C	0~+70°C	0~+70°C	0~+70°C	0~+70°C
