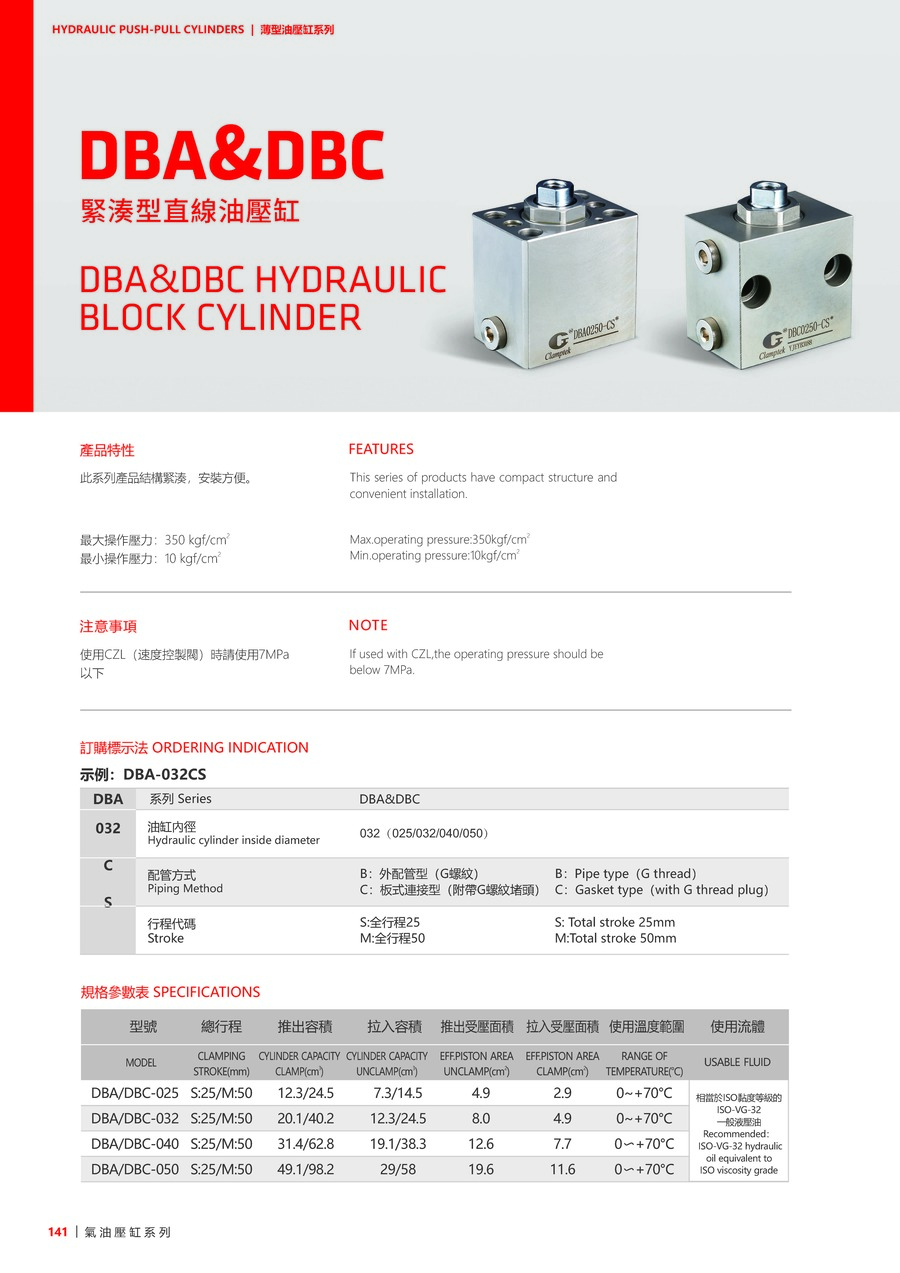

DBA, DBC

Información del Producto

This series of products have compact structure and convenient installation.

Max. operating pressure: 350 kgf/cm²
Min. operating pressure: 10 kgf/cm²
NOTE:
If used with CZL, the operating pressure should be below 7MPa.

Usable fluid:
ISO-VG-32 hydraulic oil equivalent to ISO viscosity grade.

Indicación de Compra

DBA
032
C
S

Información del Producto

Modelo DBA/DBC-025 DBA/DBC-032 DBA/DBC-040 DBA/DBC-050
Total Stroke(mm) S: 25, M: 50 S: 25, M: 50 S: 25, M: 50 S: 25, M: 50
Cylinder Capacity Clamp(cm³) 12.3, 24.5 20.1, 40.2 31.4, 62.8 49.1, 98.2
Cylinder Capacity Unclamp(cm³) 7.3, 14.5 12.3, 24.5 19.1, 38.3 29, 58
EFF. Piston Area Unclamp(cm²) 4.9 8 12.6 19.6
EFF. Piston Area Clamp(cm²) 2.9 4.9 7.7 11.6
Range of Temperature(°C) 0~+70°C 0~+70°C 0~+70°C 0~+70°C
